Product overview

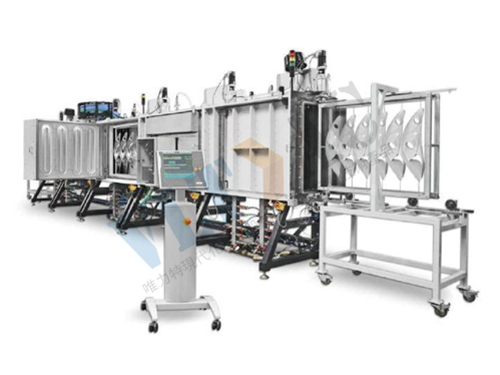

It can carry out coating for injection molding workpieces of various sizes at a reasonable production cost. The length of the workpiece holder is 120 mm, the width is 90 mm, and the depth of the workpiece can reach 250 mm. The workpiece holder can pass through the loading room, the process room, and the unloading room for coating. The equipment adopts a modular design and responds to the actual production needs of customers through flexible modular combinations. To make all imagination possible, this model can provide two, three or even more process chambers, and is equipped with high-quality sputtering components to ensure the production efficiency of the equipment. Continuing the consistent principle of Velit Vacuum, simple operation and easy maintenance. Its reliable processing stability ensures that it will not become a bottleneck even in the most complex production lines.

Technical parameter

Device model	VLT-2000C type	VLT-2000CF type	VLT-2000CP type
Size	2000×2600×40	2000×2600×40	2000×2600×40
Number of targets (pieces)	4	4	4
Sputtering power (KW)	80×4	80×4	80×4
Total installed power (KW)	400	400	400
Number of vacuum chambers (pieces)	7	7	7
Number of coating rooms (pieces)	2	2	2
Vacuum pumping unit type	Vacuum pump + oil diffusion pump	Vacuum pump + molecular pump	Vacuum pump + oil diffusion pump
Production cycle (minute/piece)	3	3	4
Vacuum chamber material	Stainless steel	Stainless steel	Stainless steel
Control method	PLC	PLC	PLC
Production methods	Horizontal	Horizontal	Horizontal
Auxiliary equipment	Horizontal glass cleaning equipment Mirror back coating baking equipment	Horizontal glass cleaning equipment Mirror back coating baking equipment	Horizontal glass cleaning equipment Mirror back coating baking equipment
